Two Stage R-C Coupled TransistorAmplifier

We are the leading manufacturer and supplier of Two Stage R-C Coupled TransistorAmplifier. Now accepting bulk orders for government tenders in every major country around the globe.

Two Stage R-C Coupled TransistorAmplifier Manufacturer in Zambia

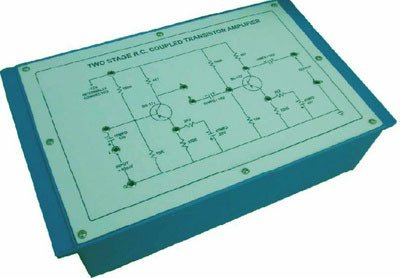

Experimental training board has been designed specifically for the study of two stage r-c coupled transistor amplifier. Practical experience on these boards carries great educative value for science and engineering students.

Object:

Study of the characteristics of two stage r-c coupled transistor amplifier :

Study of the overload characteristics of the amplifier.
Study of the frequency response of the individual as well as the cascade amplifier.
Calculate the output and input impedance of the individual stages as well as that of cascade amplifier.

Features:

The board consists of the following built in parts :

01. -12v d. C. Ic regulated power supply internally connected.

02. Two pnp transistors.

03. Adequate no. Of other electronic components.

04. Mains on/off switch, fuse and jewel light.
