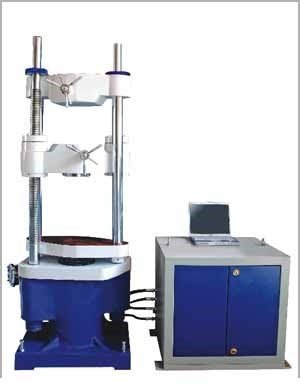

Universal Testing Machine
Salient Features of Universal Testing Machine:
- Loading accuracy as high + 1%.
- Speeds: Straining at variable speeds to suit wide range of materials.
- Facilities for tests: Motor-driven threaded columns for quick and convenient adjustment of lower cross head to facilitate rapid fixing of tear specimen.
- Autographic recorder: Simultaneous roll autographic recorder supplied as standard to enable study of the behaviors of materials.
- Ideal Dia.: High reading accuracy due to large size ideal design of dial.
- Large columns: Large effective clearance between columns enables testing of standard specimen as well as structures. Easy Changeability: Easy change from phain to threaded and screwed specimens.
- Simple and Safe: Simple to operate. Robust construction.
- Chrome plated metal components. Wide range of standard and special attachments / accessories available
Technical Specifications:
| Model | Units | AECE451A | AECE451B |
| Max. Capacity | 100 | ||
| 1st Measuring Range Resolution | KN | 0-100 | |
| 0.2 | |||
| 2nd Measuring Range Resolution | KN | 0-50 | |
| 0.1 | |||
| 3rd Measuring Range Resolution | KN | 0-25 | 0.01 KN |
| 0.05 | |||
| 4th Measuring Range Resolution | KN | 0-10 | |
| 0.02 | |||
| Max. Clearance for Tensile Test | mm | 50-700 | |
| Max. Clearance for Compression Test | mm | 0-700 | |
| Clearance between Columns | mm | 500 | |
| R.A.M. Stroke | mm | 150 | |
| Straining/Piston Speed at no load | mm | ||
| mm | 0-300 | ||
| Electric Supply | kw | 1 |
