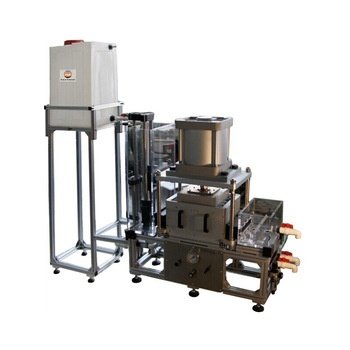

We are the leading manufacturer and supplier of Water Flow Control Bench. Now accepting bulk orders for government tenders in every major country around the globe.
Measure of the output power of the regulator on the control cabinet with the help of secured plugs
Technical specifications
A water supply tank in transparent PVC
A circulating pump
A proportional pneumatic valve
A converter P/I
A diaphragm
A differential pressure sensor with transducer, output 4-20 mA
2 flow meters
A set of manual valves
Filter regulator
A pressure disturbance circuit
A digital controller : universal input: mV, V, mA, T/L, RTD – output 4-20 mA
Control Algorithm : P, PI, PID, auto adaptive.
Shunt for the measure of the output power of the regulator and the signal of the pneumatic valve with the help of secured plugs for connecting recorder or other devices.
Options :
Data acquisition module ref MAC composed with :
A regulator with a RS485 communication card. In this case the reference number of the equipment equipped with the regulator with card become.
A converter RS485/RS232.
A data acquisition software under Windows allowing :
Reading PID parameters.
The drawing of the curves.
The remote control of the regulator parameters.
The storage of the values
PC computer type Pentium IV
Dimensions
1 700 x 1 500 x 500 mm.
Essential requirements
Power supply : 380 V three phases – 50 Hz – 0.37 kW (other voltages on inquiry)
Compressed Air supply: 6 NL/h – 6 bars (not supply as standard)
