Specification:-

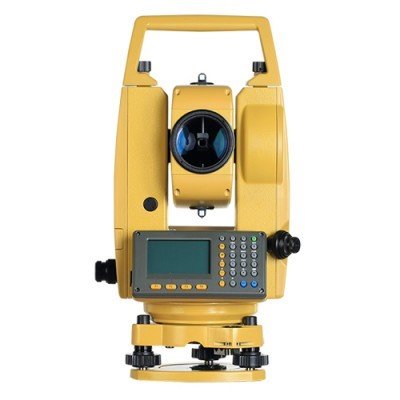

A total station or TST (total station theodolite) is an electronic/optical instrument used in modern surveying and building construction. The total station is an electronic theodolite (transit) integrated with an electronic distance meter (EDM) to read slope distances from the instrument to a particular point.
A versatile all-in-one non-prism total station that mounts a Windows®CE.NetTM-based data collection function in a pulse total station that is accurate and without incorrect indication.
| Data collector function and application program are standard provisions. | |
| Windows®CE.NetTM is installed. | |
| A large color display + touch panel | |
| Real-time 3D view (Tuned to movements of the system, 3D positions are graphically displayed) | |
| Small diameter pin point pulse | |
| Data send and receive function using the Internet (e-mail). | |
| Versatile interfaces (Transmission and reception via a CF card, USB and RS-232C) |
Specifications;
| TELESCOPE | |
| Length | 150mm |
| Objective Lens Dia. | 45mm (EDM 50mm) |
| Magnification | 30 × |
| Image | Erect |
| Field of View | 1°30 × |
| Resolving Power | 2.8″ |
| Min. Focus Distance | 1.3m (4.29 ft.) |
| DISTANCE MEASUREMENT | |
| Measuring Range Non-prism mode In low light condition and without sun glare on target | (Target: White surface) 1.5 to 250m (5 to 820 ft.) |
| Prism Mode 1 prism (Condition 1) | 3,000m (9,900 ft.) |
| Condition 1: Sight haze with visibility about 20km (12.5 miles) moderate sunlight with light heat shimmer. | |
| Measurement Accuracy | |
| Non-prism Mode | (Diffusing Surface) |
| 1.5m or more (5 ft. or more) | ± (5mm) m.s.e. |
| Prism Mode to 25m (to 82 ft.) | ± (3mm+2ppm・D*) m.s.e. |
| 25m or more (82 ft. or more) | ± (2mm+2ppm・D*) m.s.e. |
| Tracking Measurement Mode | 10mm (0.02 ft.) |
| Measurement Display | 11 digits: max. display 9999999.9999 |
| ANGLE MEASUREMENT | |
| Method | Absolute Reading |
| Detecting System | H: 2 sides V: 2 sides |
| TILT CORRECTION | |
| Type | Dual axis |
| Method | Liquid type |
| Compensating Range | ±4′ |
| Correction Unit | 1″ (0.1mgon) |
| COMPUTER UNIT | |
| OS | Microsoft Windows® CE.Net 4.2 |
| Processor | 177 Mhz Hitachi SH7750R |
| Serial I/F Port | RS-232C (6 pin) USB (type B) for ActiveSync® |
| Display Unit | 320×240 (QVGA) dots Graphic LCD TFT color |
