Axial Fan Test Rig

Axial Fan Test Rig

We are the leading manufacturer and supplier of Axial Fan Test Rig. Now accepting bulk orders for government tenders in every major country around the globe.
Send Enquiry
Description
Related Products

Axial Fan Test Rig Manufacturer in Zambia

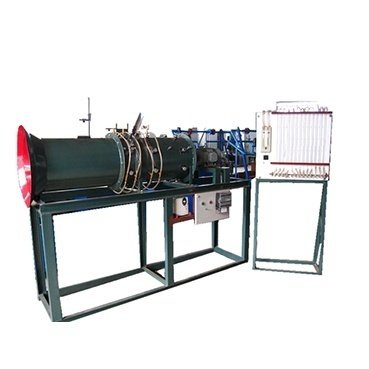

Axial Fan Test Rig

This equipment comprises of a Axial Flow Fan coupled to a DC motor. Power input to the DC motor is varied by means of a Thyristor controlled DC Drive to vary the RPM of motor. A RPM indicator with proximity sensor indicates the RPM if Axial Fan.

A pitot tube is provided in the delivery line of the Axial Fan for static and dynamic pressure measurement.

Experiment:

  • To find out the discharge, head and efficiency of the Axial Fan
  • To plot the graph Efficiency Vs Discharge
  • To plot the graph Discharge Vs Head

Utilities Required:

  • Electricity 1 kW, 440V AC, single Phase
  • Floor Area 2.5 x 0.75 m
